OnSite 30 Radar Speed Display

OnSite 30 Speed display with built in radar and data collection function.

Part Number: OnSite 30


OnSite 30 Speed Display With Integrated Traffic Logger

OnSite 30 Speed display is two digit speed display with 3 LED -rows in each LED-segment. Unit has built in radar and data collection function. Optionally system is available also with battery pack, solar panels and data collection options as well. Wide 40 degree LED-angle suits especially for built up areas and cities. Automatic brightness adjustment adjusts LED brightness to fit in all lighting conditions and also increases operating time in battery operated version as well.

Display will show to approaching driver his or her speed, and flashes the speed few times if pre-set speed limit is exceeded. Cut off speed (maximum speed) shown in display can be set from control panel easily. Also minimum speed shown in display can be set from control panels, so e.g. light traffic like push bikes and pedestrians can be filtered out completely.

Speed limit, minimum and maximum speeds can are set by using control panel equipped with back light LCD screen and five control buttons.  Screen and buttons are located behind separate and lockable hatch. USB and serial connections for data transfer are also located behind this same hatch.

Integrated speed data collection module gathers speed, date and time information from up to 100 000 samples. Module gathers information not only from approaching targets, but resending targets as well. This information can be easily transferred over serial / USB connection directly from display. Optional GSM/GPRS –data transfer allows wireless data transfer from display as well.

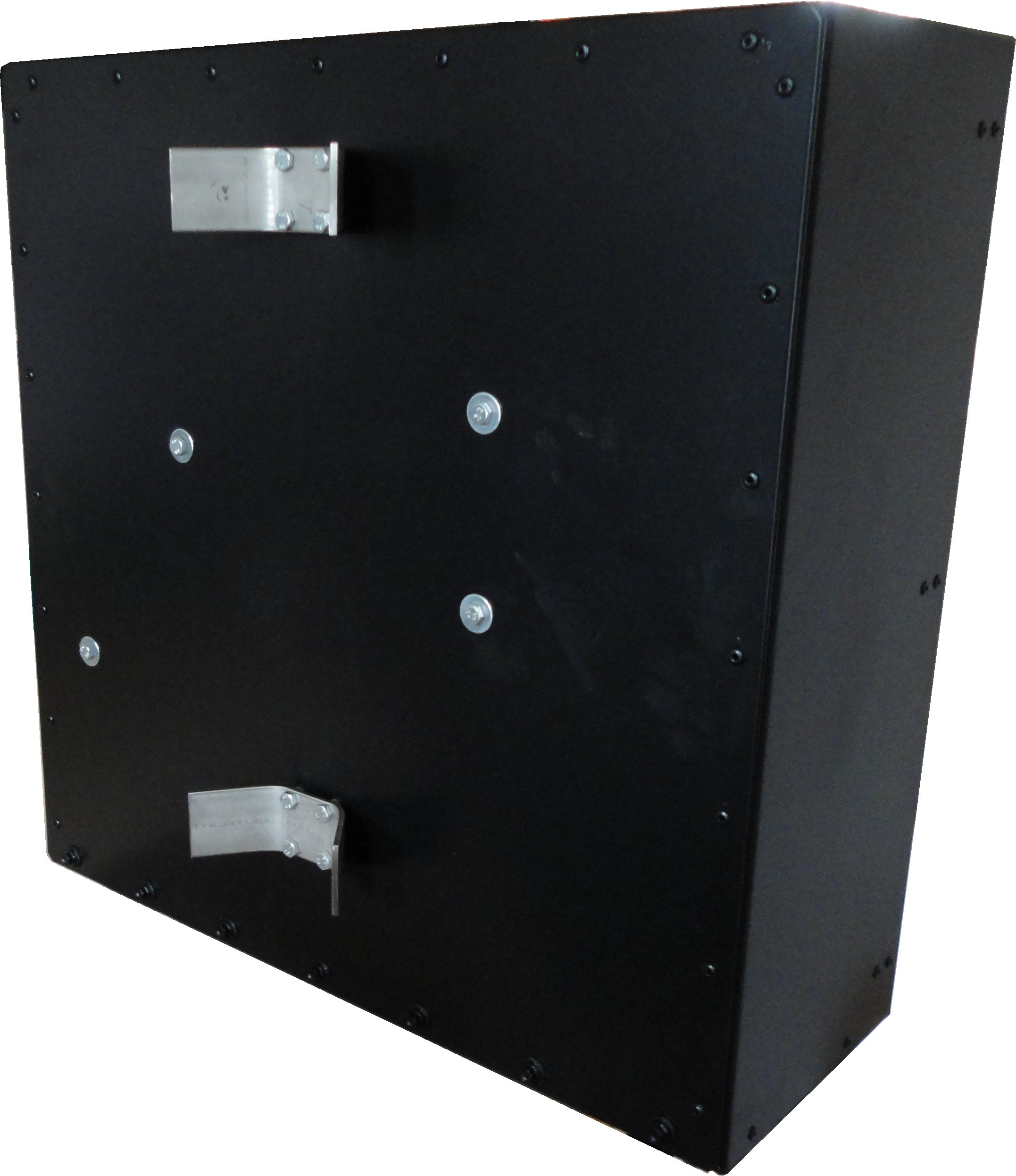

Product Images

Related Documents

English Brochure


Finnish Brochure
